China Manufacturer Slotted Carbon Steel Pipe Bridge Screen Bridge Slotted Well Screen

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Contact us

Oasis Oil Tools Co., Ltd
[China]

Address
Fengquan Industrial Park Xinxiang Henan
Phone
+86-373-2947626
Contact name
Maggie Guan

Quick Information

  • Brand Name: OASIS
  • Place of Origin: China
  • Model Number : OA-Bridge well slotted screen
  • Slot Size : 0.5-2.5mm
  • Thicness : 3-12mm
  • Unit length : 1-6M, as per your request
  • material : stainless steel, carbon
  • Surface treatment : galvanized, painting, etc

Description

Product description of China manufacturer slotted carbon steel pipe bridge screen/bridge slotted well screen with high quality

Bridge slot screen have bridge opening arranged in rows and are staggered to reduce the negative effect on the screen's strength. Typically the slots are punched in a flat sheet that is subsequently rolled into a tube and welded. The sand and gravel can't easily block the slot because of the special bridge style design. This kind of slot screen has great mechanical strength and water entering capacity. Meanwhile, bridge slot screens are light, cheap and easily operating. Regarded as the best choice of well tube filter, they are widely applied in a variety of fields in the developed countries.

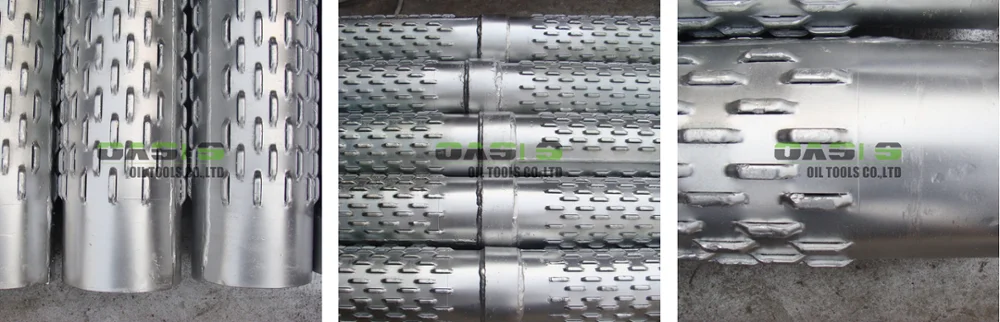

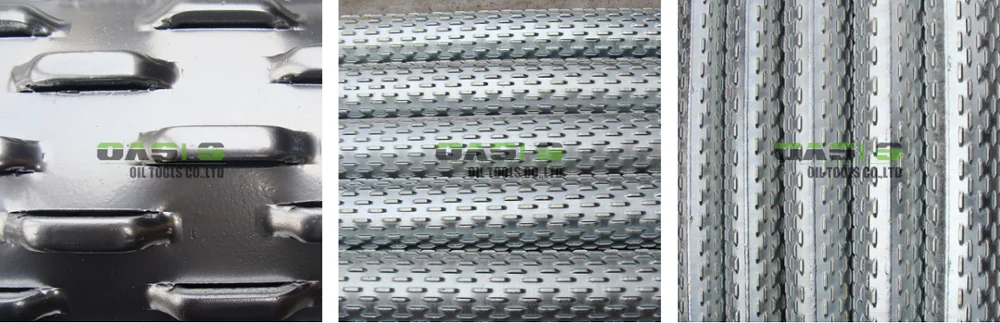

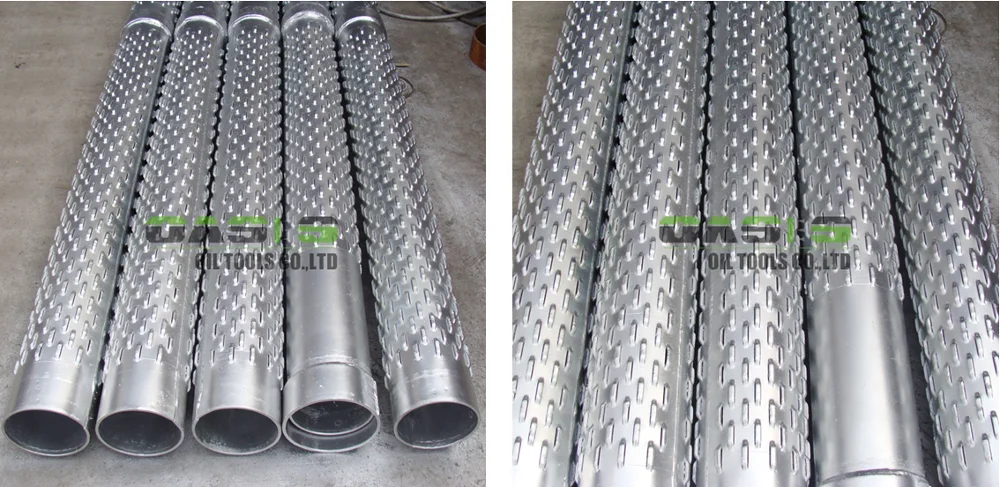

Images of China manufacturer slotted carbon steel pipe bridge screen/bridge slotted well screen with high quality

China manufacturer slotted carbon steel pipe bridge screen/bridge slotted well screen with high quality

China manufacturer slotted carbon steel pipe bridge screen/bridge slotted well screen with high quality

China manufacturer slotted carbon steel pipe bridge screen/bridge slotted well screen with high quality



Specification of China manufacturer slotted carbon steel pipe bridge screen/bridge slotted well screen with high quality

Diameter

(mm)

146 159 159 219 219 273 273 273 325 325 325 377 377 377
ID 130 140 138 200 198 254 250 246 305 300 297 357 350 346
Thickness 5 5 6 5 6 5 6 8 5 6 8 5 6 8
Coupling OD 146 160 162 220 226 274 278 278 325 328 329 377 378 379





Advantages of China manufacturer slotted carbon steel pipe bridge screen/bridge slotted well screen with high quality

1. Bridge slotted well screens have accurate slot tolerances, which makes it the perfect choice of water well screens

2. The unique construction of bridge slotted well screens makes the screen have mechanical robustness

3. The galvanized coating of bridge slotted well screens prolong the service life of water well.

4. Bridge slotted well screens are manufactured from precision punched quality sheet metal, which makes the bridge slotted well screens light and cheap.

5. Bridge slotted well screens have versatile end fittings, which makes them easy to install outdoors.



Applications of China manufacturer slotted carbon steel pipe bridge screen/bridge slotted well screen with high quality

The production of slot screens, which  are  the national geological sampling the popularization of bridge eyes with introduction of the filter water equipments, this type of products design is reasonable, reliable quality, suitable for hydrology, geology, engineering geology, chemical engineering geology, geothermal air conditioning, foundation precipitation, water source development, farmland and the urban water supply various industries such as construction .



China manufacturer slotted carbon steel pipe bridge screen/bridge slotted well screen with high quality





Packing&Delivery

Packing details:  slotted carbon steel pipe bridge screens/bridge slotted well screens are packed with bubble bags or woven bags or then with wooden strip; in bundle or unbundle; as per clients' request.



Delivery time: slotted carbon steel pipe bridge screens/bridge slotted well screens are delivered in 3-30 days or according to quantity or specifications

China manufacturer slotted carbon steel pipe bridge screen/bridge slotted well screen with high quality

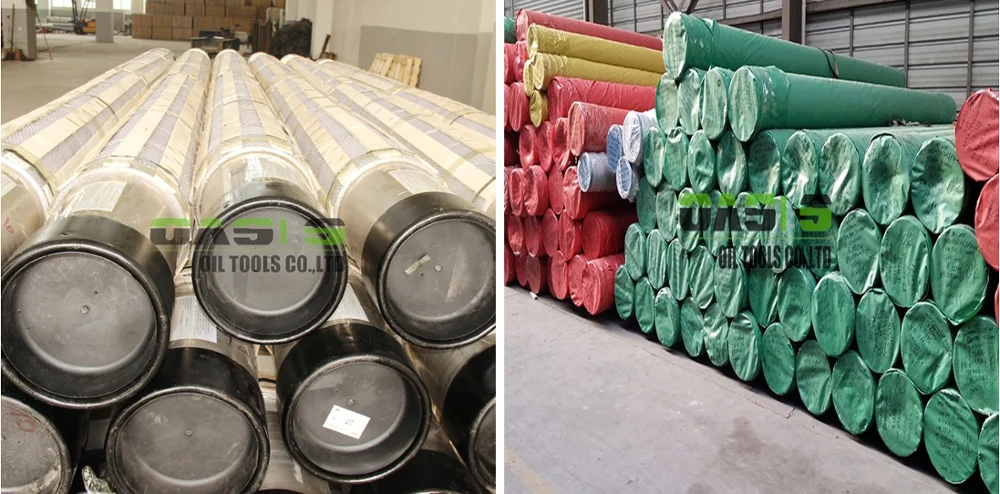

bubble bags with wooden strip                                                                                                                                  woven bag

China manufacturer slotted carbon steel pipe bridge screen/bridge slotted well screen with high quality

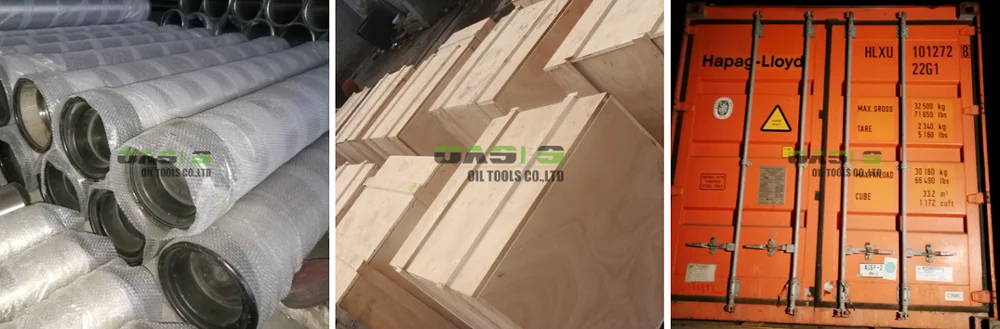

bubble bag                                                                                                                wooden case                                                                             container

China manufacturer slotted carbon steel pipe bridge screen/bridge slotted well screen with high quality

                                                                                         various ways of delivery &transportation including by sea/air/train/express,etc.



Company profile

Oasis Oil Tools Co., Ltd, is a famous manufacturer which integrates the research and development, design, manufacture and sell water well screens/johnson screens/wedge wire screen/rod base screen/continuous slot screen/non-inforced Johnson screen, oil well screens and sand control well screens, bridge slotted well screens, pipe based well screens/perforated base pipe with screen jacket/pipe base screen/reinforced Johnson type screen, perforated pipe (base pipe), gravel pre-packed well screens, passive water intake screens etc. water, oil and gas well filtering products as well as API/Stainless Steel Casing& Tubing and pipes and industrial parts.

China manufacturer slotted carbon steel pipe bridge screen/bridge slotted well screen with high quality

                                                                                                                      Oasis factory

China manufacturer slotted carbon steel pipe bridge screen/bridge slotted well screen with high quality

company activity                                                                                                                                                our exhibition

China manufacturer slotted carbon steel pipe bridge screen/bridge slotted well screen with high quality

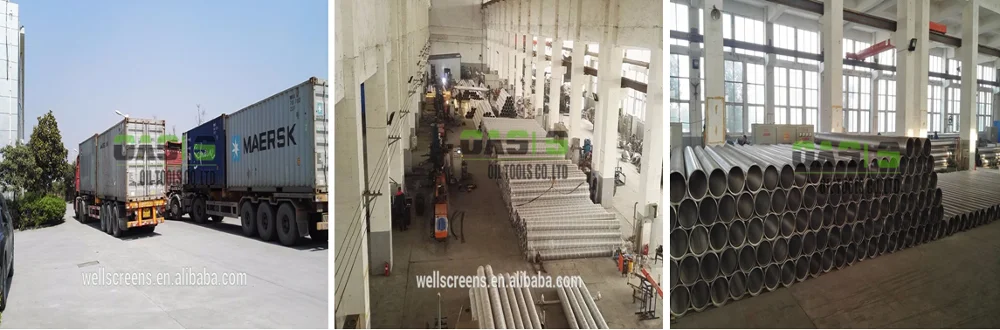

container                                                                                                                                       warehouse                                            warehouse



Certificate

China manufacturer slotted carbon steel pipe bridge screen/bridge slotted well screen with high quality China manufacturer slotted carbon steel pipe bridge screen/bridge slotted well screen with high quality

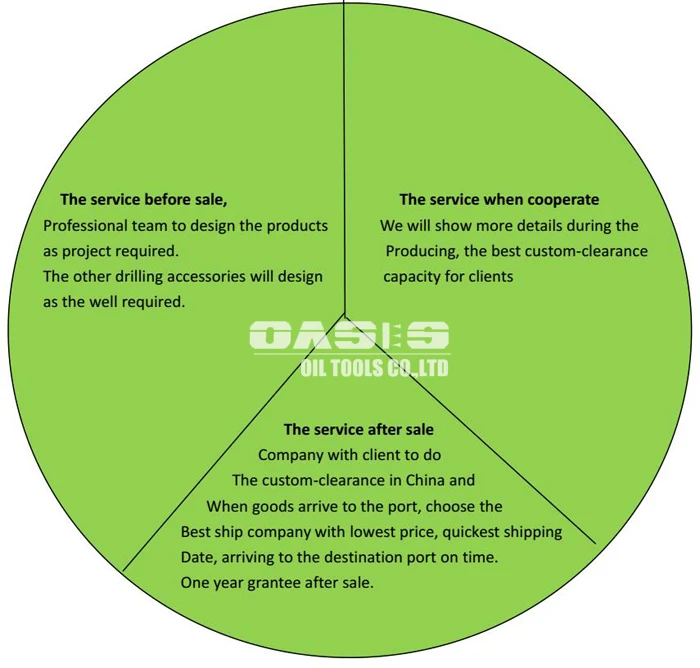

Our service

China manufacturer slotted carbon steel pipe bridge screen/bridge slotted well screen with high quality



Contact us

If you have any question or interest about our  slotted carbon steel pipe bridge screens/bridge slotted well screens, please feel free to contact us. Any enquiry will get prompt and professional suggestion. We are available 24 hours online.
